Keycap Legend Lab

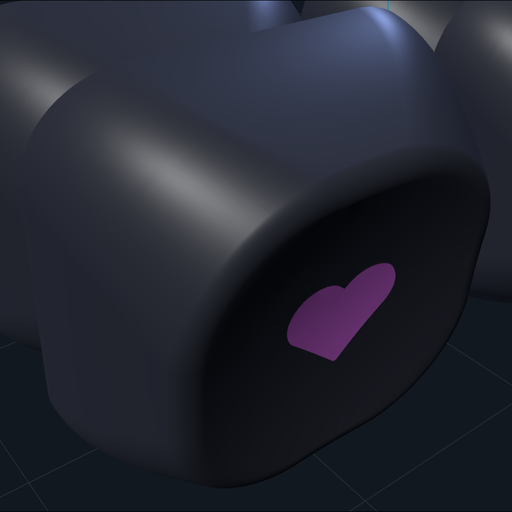

Pattern one keycap, project font glyphs into the cap, then export matching cap + legend STLs.

v1.46 · Navigation fixed

1 · Source

Single keycap STL No STL loaded. Use the demo cap to test the workflow.

Remember this STL in this browser

No saved STL yet. Small files use localStorage; larger files transparently use IndexedDB.

Source scale STL is unitless. This app treats 1 source unit as 1 mm before this scale.

2 · Font & legends

Font preset

Loading Hack Nerd Font…

Missing-glyph fallback · Nerd first Characters missing from the selected face are tried in this Nerd Font first, then Symbols Nerd Font Mono, then Noto Sans Symbols 2 only as a final Unicode safety net.

Custom TTF / OTF / WOFF Optional. Presets load lazily only when selected; custom fonts use the same Nerd-first fallback chain.

One key per line

A plain line is one legend. Spaces split a line into 2–3 independent legends on the same cap: ! 1. Use [raw]Space Bar[/raw] when a literal space belongs to one legend. Review All can assign a built-in font per key; it writes a portable prefix such as [font=monocraft] ! 1. The Nerd picker prepends each selected symbol as its own new key at the top.

Add key groups

Appends one key per line. Numbers + shifted pairs use two legends per key (top symbol / bottom number) and auto-switch the layout to Stack. Rows grow automatically when the current grid is too small.

Multi-legend layout

Legend gap mm

Legend rotation °

Rotation applies to the complete legend set on each cap after multi-legend layout.

3 · Grid

Columns

Rows

X spacing mm

Y spacing mm

Legend order

Reverse X Reverse Y

Key tilt X°78° is the default key tilt. It maps directly to a −78° local X pose, then a separate 180° bed-facing yaw makes the finished key face printer Front (−Y).

Key tilt Y°

Key tilt Z°

Whole-grid rotation Z°

Exact-floor-align the transformed keycaps

4 · Bed adhesion

Printer bed

Bed X mm

Bed Y mm

Grid spacing mm

300 × 300 mm bed centered on X/Y origin.

Bed strategy

Load a cap to calculate its exact rotated lowest vertex.

Sink into bed mm The cap is lowered by this amount, then everything below Z=0 is actually removed. The removed volume is rendered red.

Cap pre-height above bed mm

Total raft height mm

Cradle Z resolution mm Smaller = smoother/closer fit, but more raft bands. 0.10 mm is the new default.

Cap clearance XY mm

Outer raft margin mm

The cap's exact lowest point is placed at the pre-height above the BED. Above that base, the raft follows horizontal slices of the actual tilted cap at the selected Z resolution. Each support band gets its own clearance-expanded pocket, so the cradle tracks the cap as it moves sideways with Z. The visible steps are these support bands; lower the Z resolution for a smoother cradle.

Raft preview is automatic whenever Shared raft is active.

Raft preview uses the same height-sliced cradle algorithm as Build CSG, but skips all legend Booleans.

Build once to calculate bed-contact area and the printability rating.

5 · Legend geometry

Sliders are for visual tuning; the number beside each slider is the exact value used for build/export.

Size & fit Set the intended legend size and its fit envelope.

Font size mm

Curve quality

Max width mm

Max height mm

Shrink oversized legends to fit Follow actual cap surface

Surface samples per axis Ray-samples the upright source cap under the legend before making the cutter.

Stroke Adjust the font outline itself before the cutter is made.

Legend weight / embolden mm

0 mm preserves the font’s native stroke. Positive grows the outline; negative thins it.

Weight corner style Round is the best general default; use Miter when you want deliberately sharp corners.

Position Move the complete legend across the cap face.

Offset X mm

Offset Y mm

Shape & surface Stretch the legend or move it relative to the sampled cap surface.

Scale X

Scale Y

Surface Z offset

Cutter depth Controls how the legend body intersects the cap.

Mirror legend X On by default for the upright source-cap convention. The 180° bed-facing yaw handles printer direction; this mirror keeps the legend readable from Front.

Legend inset depth mm

Cutter overshoot mm

The cutter starts above the cap and extends down into it. Intersection creates the conformal legend body; subtraction creates the matching socket.

6 · Build diagnostics & export options

Boolean kernel: loading Manifold WASM + self-test…

Ready. Load a cap; Hack Nerd Font + symbol fallback load automatically.

Build diagnostics

No build diagnostics yet.

Separate-STL registration

Add shared bed-registration witness to separate STLs

Witness size mm

Witness height mm

The same tiny one-layer box is added at world origin to both separate STLs. Grouped 3MF remains the recommended export.

Load config

More ▴

CSG runs in your browser. Nothing is uploaded by this app.

Caps Legends / cutters Raft Removed geometry Build plane



Layout

Theme Dark previews

Filament colors Preview colors + grouped 3MF material colors

CapsKeycap bodies

Theme

Custom

Main legendsSingles + bottom row

Theme

Custom

Shifted / top legendsSecondary legend group

Theme

Custom

 

drag view · click face / corner

Key 1 / 1

SolidWorks MMB Orbit · Ctrl+MMB Pan · Shift+MMB Zoom · Wheel Zoom

Ready Builds run in a background worker. Form controls stay live.

0% AUTO OFF

Nerd Font symbols Search the official Nerd Fonts v3.5.0 glyph catalog; click a glyph to insert it into the legends textarea.

Open to load catalog

Key font Choose a font override for this key

Key font Overrides only this key. Reset makes it follow the global font again.

Global font

Open a key font picker

Key geometry Blank values inherit the global Geometry settings.

Size mm Legend weight / embolden mm

Rotate ° Scale X Scale Y Offset X mm Offset Y mm

Font browser Cards render in the actual font face. Faces load lazily only when their cards enter view.

Open to browse fonts
